Hadco Lighting  |  SKU: IUL516-H

Hadco IUL516 Composite Inground Light

$176.87 $221.09
Shipping calculated at checkout.

Select Optics
Select Lamp Type

Description

Lamp Included

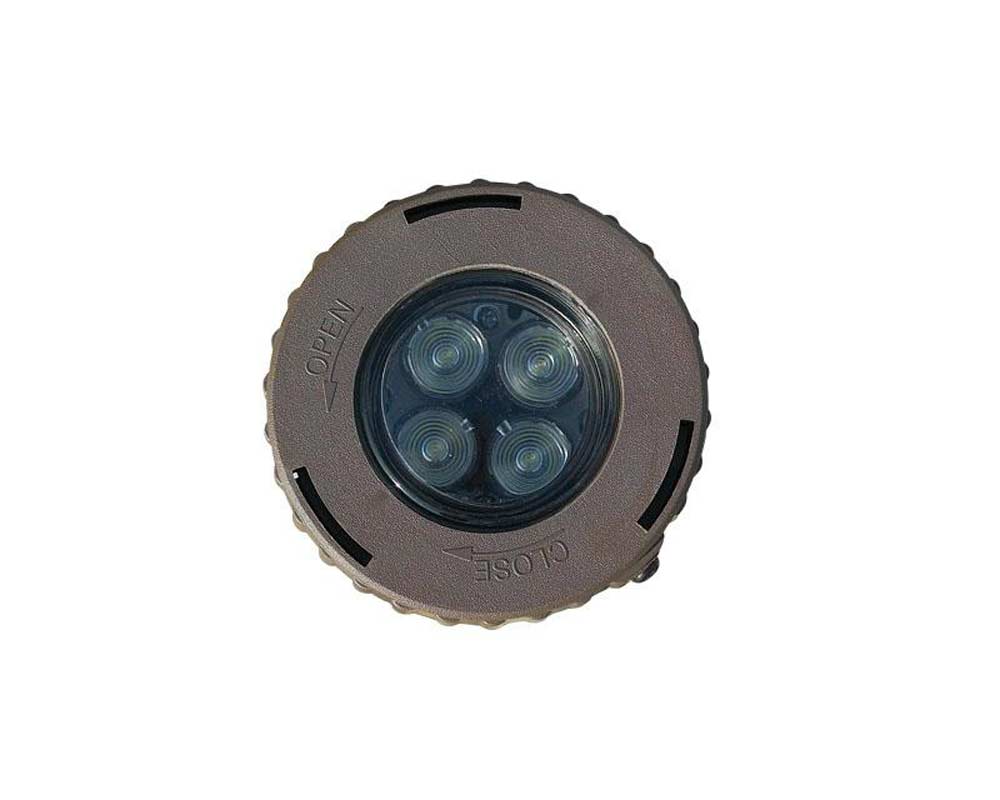

Hadcos IUL516 is a compact low voltage composite landscape luminaire for inground applications. Lamping sources include 35W maximum MR16 bi-pin lamp. Construction includes a one-piece injection molded ULTEMa® High Performance Polymer composite body with a single piece injected lens ring and gasketed lens. Twist-off operation for ease of maintenance.

Features

  • ULTEM composite housing
  • Color impregnated material finish
  • Pre-wired
  • Design flexibility
  • Ensures long-lasting durability
  • Provides added corrosion resistance
  • Quick and easy installation

Specifications

  • Housing: One-piece injection molded ULTEM High Performance Polymer composite. Lens ring is a Single-piece injection molded ULTEM High Performance Polymer with gasketed lens. Twist-off operation for ease of maintenance.
  • Height: 4.37 Inch
  • Width: 4.12 Inch
  • Max. Weight:1.24 lb
  • Electrical Assembly: Bi-pin socket type (GU5.3) with 250 C high temperature Teflon coated wire leads. 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105a°C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.
  • Certifications: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.
  • Lamping for Non LED: 35W maximum MR16 bi-pin lamp. Lower wattage lamps are acceptable. Covered MR16 are recommended to protect lamps inner capsule.
  • Lamping for LED: 7W lamp with 25a° or 35a° beam spread, 25,000 hours life. Color temperature (CCT): Warm White (3,000K nominal). No Mercury. Dimmable. Approximately 460 lumens.
  • Optical Assembly: Clear convex, tempered glass furnished with silicone O-ring for watertight seal.
  • Warranty: Ten-year limited warranty
Product Files

Click for Non LED spec sheet

Click for LED spec sheet
