Focus Industries  |  SKU: SL02ALLEDPBLT

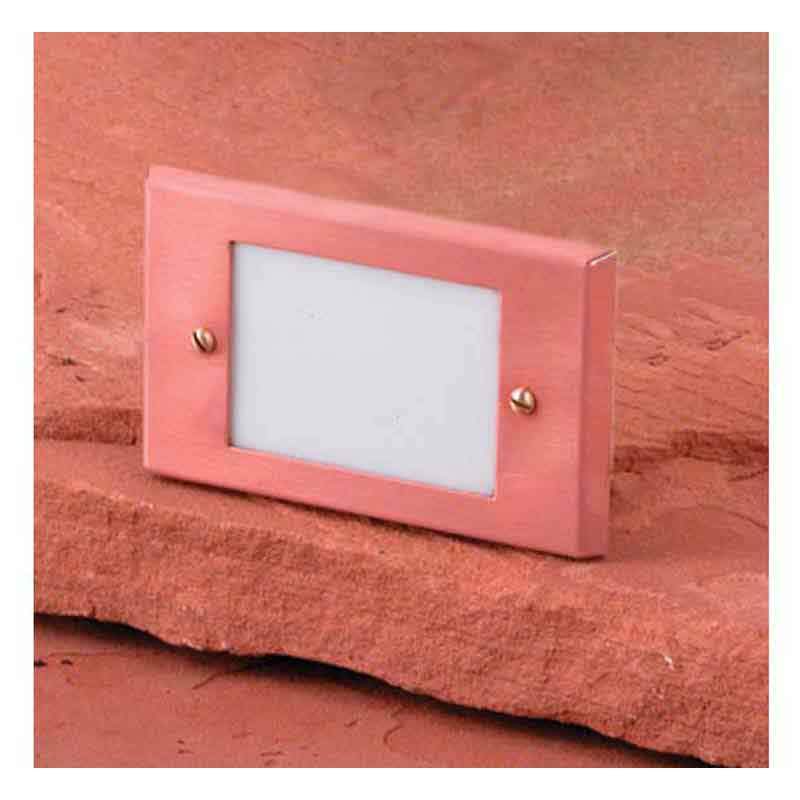

Focus Industries SL-02-AL-LEDP Series 4W LED 3000K Lensed Step Light 12V

$210.56 $263.20
Shipping calculated at checkout.

Select Finish
Select Lens
Lamp Option

Focus Industries Typically Ships within 10-28 days (exceptions may apply).

Description

Focus Industries SL-02-AL-LEDP Series 4W LED 3000K Lensed Step Light 12V

Specifications:

  • Construction: Stamped aluminum, brass, copper or stainless steel (-SS available only on SL-02 4 louver model) step/brick light with stamped stainless steel surface mounting bracket. No back box required.
  • 3 Lens Options:
    -SL-02-LEDP: Standard white acrylic; creates warm 2700K incandescent like color
    -SL-02-LEDP-SB: Sand Blast clear acrylic; creates soft 3000K halogen like color
  • Gasket: Black neosponge closed cell; .190 inch thickness
  • Light Source: 4w integrated LED flat panel with external driver, warm white 3000K, 350 lumens (3000K)
  • Lifetime Rating: 50,000 hours
  • Socket: None
  • Driver: 4w output, 12v AC input. Maximum distance from fixture is 18 feet. For use with magnetic transformers only
  • Voltage Range: 9 to 18 volts. Optimum operating range of 10 to 15 volts for consistent performance and brightness.
  • Wiring: Red(+) and Black(-) 18 gauge zip cord from LED panel. Connects to external driver Red(+) and Black(-) 18 gauge zip cord. Additional 6 inch 18/2 zip cord supplied for wiring external driver to main cable. For 25 foot 16/2 fixture lead wire add -25F to catalogue number.
  • Connection: FA-05 Quick Connector (not supplied) from LED driver to main cable (12/2, 10/2 or 8/2 only)
  • Mounting: Stainless Steel surface mount bracket; four screws and wall anchors provided; Face plate attaches to bracket with two provided screws
  • Finish: Aluminum- Black texture polyester powder coat; optional finishes available, Brass- Unfinished; optional finishes available; Copper-Unfinished; optional finishes available; Stainless Steel-Brushed
  • Caution: Must be powered by low voltage AC Magnetic transformer only
Product Files

Click for SL-02-AL-LEDP Specification Sheet

Click for SL-02-AL-LEDP Installation Instructions

Click for Focus Finish Options
