Cast Lighting  |  SKU: CTLED141

CTLED141 LED Classic LED Tree Light By Cast Lighting

$391.10 $488.88
Shipping calculated at checkout.


Cast Lighting Typically Ships within 1-5 days (exceptions may apply)

Description

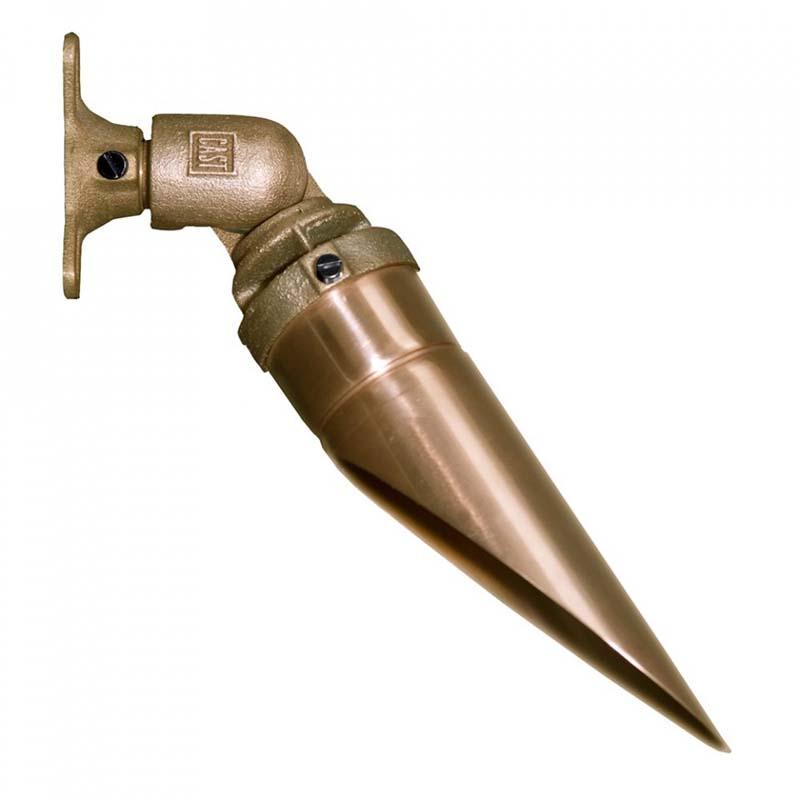

The Cast Lighting CTLED141 is a CAST LED Tree Light (41°) - replaceable optics available

Description

This low voltage LED landscape light combines the rugged solid bronze construction of the CAST Bullet with the industry's most advanced and feature-filled module. With just one finish (solid sand-cast bronze), two light levels and three optical beam spreads, this one LED light replaces (and surpasses) the dozens of models from other manufacturers.

Applications

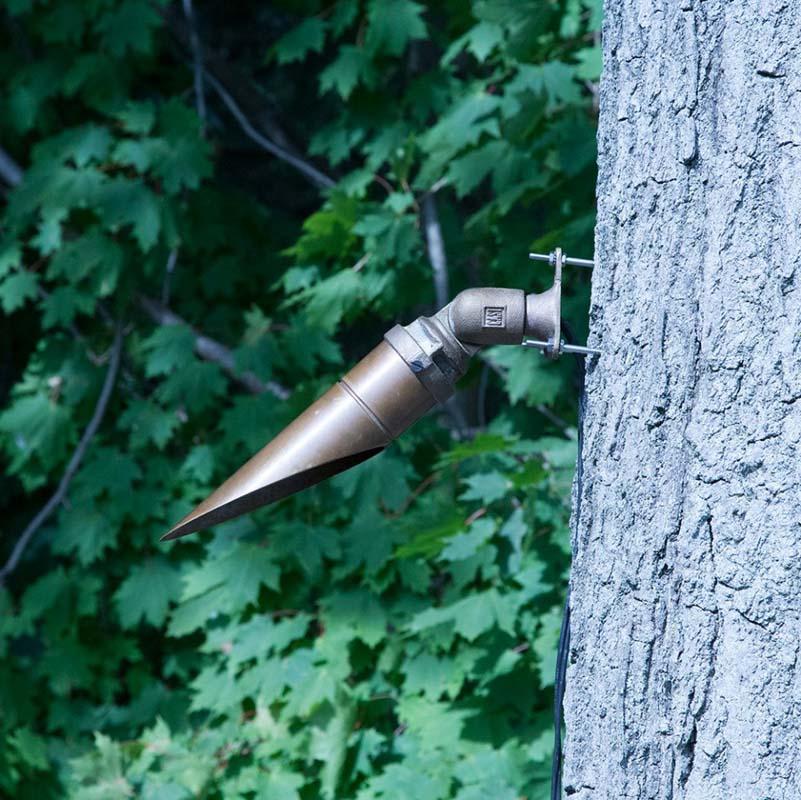

The Classic Tree Light is suitable for mounting in trees or on structures to provide a natural downlighting or moonlighting effect.

Features
  • Replaceable LED module (MR-16 size) thermally bonded to solid bronze fixture body for optimal heat dissipation
  • Replaceable optics for beam angles of 41° (included), 21°, and 12° (sold separately)
  • LED Sense technology controls forward current to compensate for conditions of extreme ambient heat.
  • Tree Mounting Hardware Kit (CTREEH1) included
  • Accepts input voltages between 10V and 24V AC for maximum system design flexibility
  • Will not cause electromagnetic interference (EMI)
  • Hi/Low Switch for LED module
  • Automatic recognition and compensation for varied magnetic and electronic transformer types
  • Dimmable with standard low-voltage phase dimmers
  • Warm white color temperature (2,720K°) and high color rendering index (80 CRI)
  • Pre-wired with 35' #18/2 tin-coated No-Ox® marine grade wire
Specifications
  • Dimensions and Weight: Shroud, base, and bracket (fully extended): 2.5" wide x 9" tall
  • Weight: 5 lbs.
  • Listing: UL 1838 Listed Low Voltage Luminaire for wet locations
  • Construction:
    • Body and Canopy Mount: Solid Sand-Cast Bronze
    • Shroud: Thick walled copper
    • Glass: Flat, tempered, hardened, crystal-clear glass
    • Retaining Screw: Stainless steel
    • Internal Wiring: Tin-coated wire, crimped and sealed connections, protected with fiberglass sleeving
    • External Wire: Includes 35 ft. #18/2 tin-coated lead wire
    • LED Module: Secured with two stainless steel screws to fixture base
    • Solid bronze knuckle, base, and bracket can be adjusted to any angle and mounted to the tree with one hand. Mounting hardware stand-offs included.
  • Tree Mounting Hardware Kit (CTREEH1) included

LED Specifications:

  • LED Light source: Life (L70) 60,500 hrs., Color Temp., 2720°K, CRI 80
  • Input voltage: 10 to 24 V AC or DC
  • Power Low setting: Amps .37, Watts 4.1, Power Factor .93 Volt Amps 4.41
  • Power High setting: Amps .52, Watts 5.86, Power Factor .93 Volt Amps 6.3
  • Lumen Output Low setting: 157 lm
  • Lumen Output High setting 269 lm
  • Center Beam Candela Low setting: 567
  • Center Beam Candela High setting 781
  • FCC compliant for EMI interference

Listings:

  • Emmision Standards: FCC Class A conducted and radiated
  • UL 8750 recognized; CSA C22.2 No. 250.0-08 Canadian National Standard for Luminaires
  • RoHS
California Residents: Prop 65 regulations

Product Files

Click for CAST Landscape Lighting Catalog

Click for Classic LED Tree Light: LM-79 Data

Click for Classic LED Tree Light: Product Sheet

Click for Instructions

Click for Landscape Warranty

Click for Source Lighting Lamp Guide

Click for Tree Wiring Technical Note
