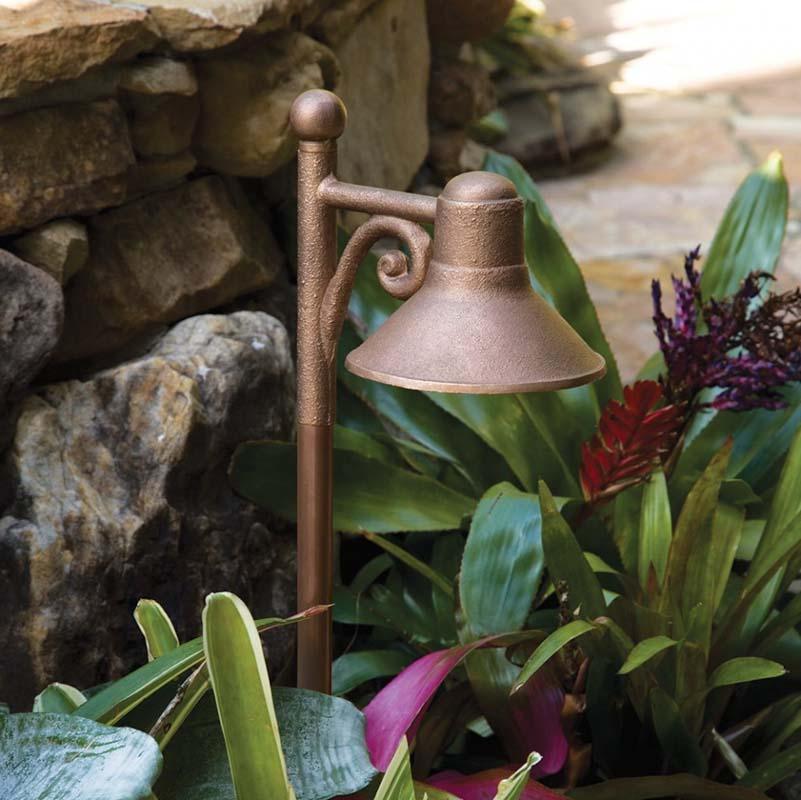

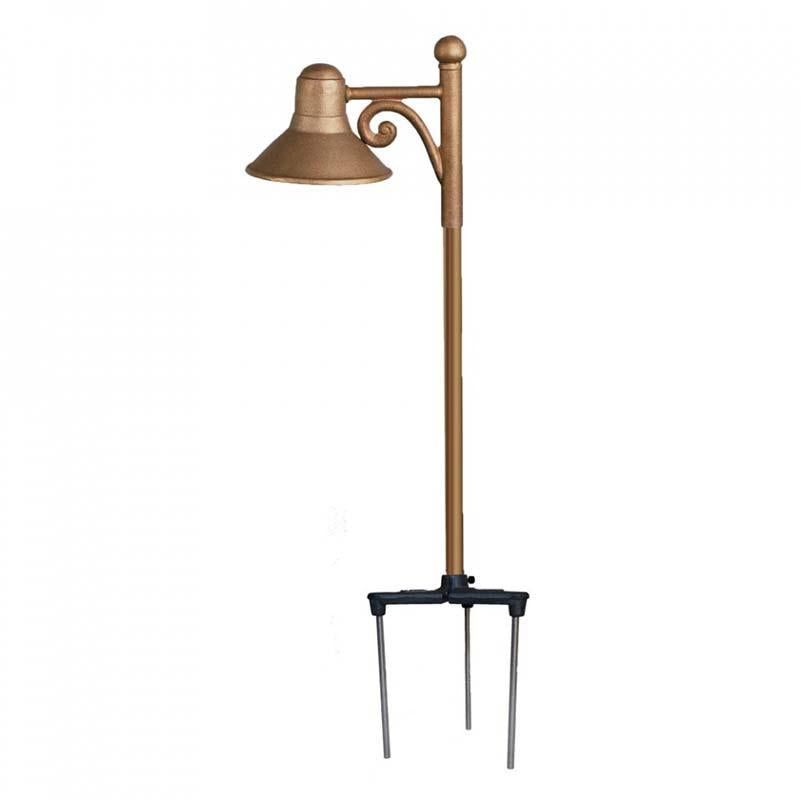

CSA1 Classic Savannah Area/Path Light By Cast Lighting

This rugged and decorative solid bronze & copper path/area light provides a soft glare-free illumination. Since illumination is provided directly from the lamp and reflected from the hat, this fixture provides a brighter illumination than other fixtures. This fixture is available in Halogen (CSA1CB) and Integrated LED (CSA1LED2). Existing installations of the CSA1CB can be converted to LED by purchasing the CAST LED Path Light Module (CSWLED2).

Suitable for lighting walkways, planting beds, and other areas

• Easily converted to LED by adding the CSWLED2 Module
• Solid bronze hat and vase
• Solid Black Coated Eurometal base and stainless steel spikes, Large Talon Stake (CTSL1)
• Heavy-gauge copper stem
• Pre-wired with 35aa tin-coated No-Ox® marine grade wire
• High-temp socket
• Spider Splice® ready

• Dimensions and Weight:
  • Stem Height (stake top to post top): 23"
  • Width (from post to edge of hat): 8.5"
  • Width (hat): 6"
  • Stake 18.5"
  • Weight: 9.2 lbs.
• Listing:a All CAST Lights conform to: UL Std's 1838 & 8750; CE; Certified to CAN/CSA Std's C22.2 No. 250.0 & C22.2 No. 250.13. Suitable for wet locations. FCC Class B Conducted and Radiated. RoHS.
• Construction:
  • Hat, Arm, and Post Top: Solid Sand-Cast Bronze
  • Stake: Solid black coated Eurometal base and stainless steel spikes, Large Talon Stake (CTSL1)
  • Stem: Heavy duty copper (unthreaded end to secure in stake with set screw) (0.115a wall thickness)

Specifications for CSA1CB

• Lamp Specifications: Lamp: 12V S8 Wedge Base (35W max.)25W Lamp included

• Socket Assembly: High-temperature composite S8 socket rated to 220 degrees Celsius.
• Wiring: Tin-coated No-Ox marine-grade wiring (inside fixture and external 35 ft. #16/2 lead); socket wire crimped and soldered to lead wire using tin solder and tin crimps protected with waterproof shrink tubing and fiberglass sleeve.

Specifications for CSA1LED2

• LED Light Source: 2 Cree LEDaas, Life(L70) 62,000 hrs. Color Temp: 2737°K CRI: 82
• Input voltage: 10 to 24V, AC or DC
• Power: 4.41 watts, .4 amps, Power Factor: .91 Volt Amps: 4.85
• Lumen fixture output: 200 lm
• Center Beam Candela: 94
• FCC compliant for EMI interference
• Wiring: Tin-coated No-Ox marine-grade wiring (inside fixture and external 35 ft. #18-2)
