Cast Lighting  |  SKU: CCL1CB

Cast Lighting Classic Chelsea London Area/Path Light

$487.66 $609.58
Shipping calculated at checkout.


Cast Lighting Typically Ships within 1-5 days (exceptions may apply)

Description

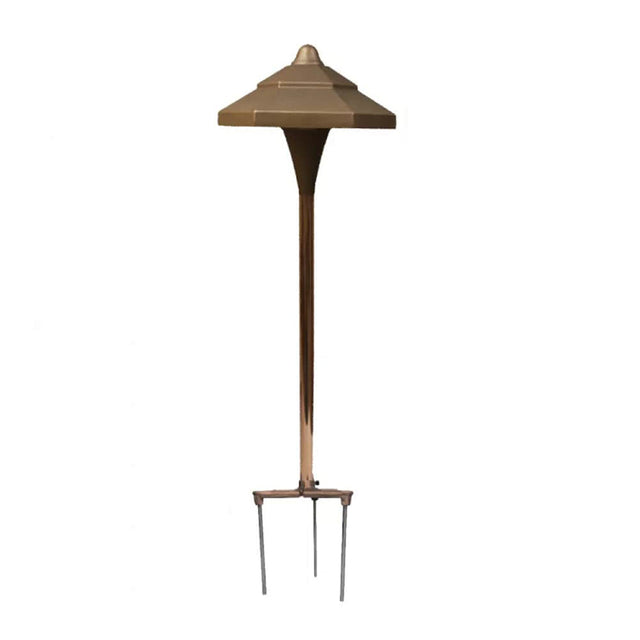

Cast Lighting Classic Chelsea London Area/Path Light

This rugged solid bronze & copper path/area light provides a soft glare free illumination. LED conversion is achieved with the CALED2 module (not included).

Made with 76% USA content!

Applications

Suitable for lighting walkways, planting beds, and other areas.

Features

  • Easily converted to LED by adding the CALED2 Module (not included)
  • Solid bronze hat, vase
  • Fixture provided with large SOLD BRONZE talon mount stake with three 1/4" x 7"" stainless steel spikes (CTSL1CB)
  • Heavy-gauge copper stem
  • Pre-wired with 35’ #16/2 tin-coated No-Ox® marine grade wire
  • High-temp socket
  • Spider Splice® ready

Models

  • CCL1CB
Quick Info
  • CAST Lighting magnetic toroidal core Transformers
    Journeymen 75, 150, 300, 600, & 900 Watt and Master Series 900 & 1200 Watt
  • CAST No-OX® Tin-Coated Marine-Grade Wire
    Available in #8/2, #10/2, #12/2, #14/2, & #16/2 gauges.
  • Astronomical Digital & Mechanical Timers
  • Photo Cells
  • Seamless non-insulated crimp connections & Heat shrink for wire connections

Specifications

  • Dimensions and Weight:
    • Stem, Body, and Hat: 26.5" x 8.5" wide
    • Stake: 7.5"
    • Weight: 8 lbs.
  • Lamp Specifications: Lamp: 2.5W S8 LED Lamp Model #SL3156250 (35W max.) (not included).
  • LED Conversion: CALED2 LED Module (not included).
  • Fixture Specifications w/CALED2: Voltage Range (AC/DC) 10-24, Total Lumens 116, Watts 4.23, Volt Amps: 4.65, CCT 2800 +/-
  • Listing: All CAST Lights conform to: UL Std's 1838 & 8750; CE; Certified to CAN/CSA Std's C22.2 No. 250.0 & C22.2 No. 250.13. Suitable for wet locations. FCC Class B Conducted and Radiated. RoHS.
  • Construction:
    • Hat and Body: Solid Sand-Cast Bronze
    • Stake: Large SOLD BRONZE talon mount stake with three 1/4" x 7" stainless steel spikes (CTSL1CB)
    • Stem: Heavy duty copper (unthreaded end to secure in stake with set screw) (0.115” wall thickness)
    • Socket Assembly: High-temperature composite S8 socket rated to 220 degrees Celsius.
Product Files

Click for CAST Landscape Lighting Catalog

Click for Classic Chelsea London Area/Path Light: Product Sheet
