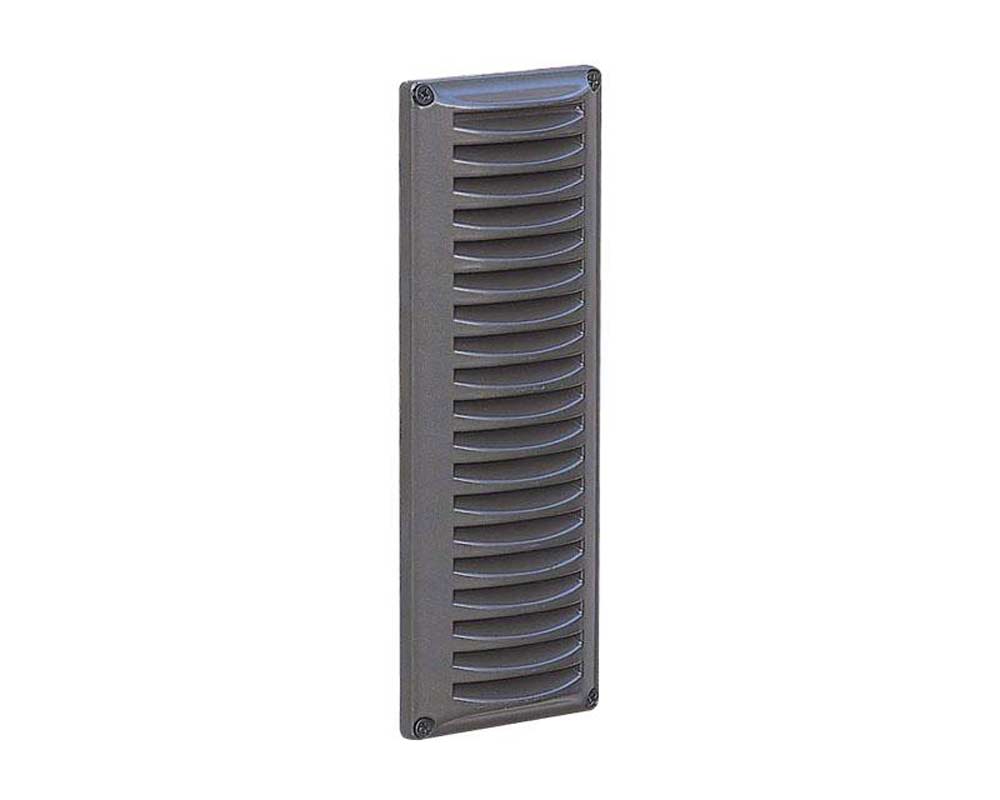

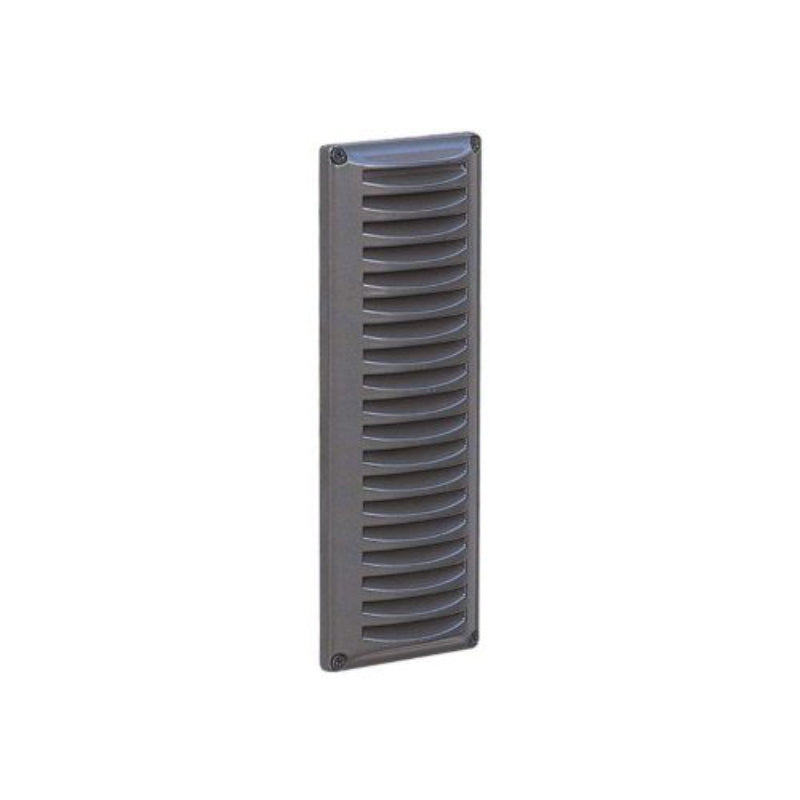

Hadco RSV2 LED Generation II Vertical Aluminum Step Light

Hadco RSV2 LED Generation II Vertical Aluminum Step Light

RSV2 LED - the perfect solution for high pedestrian traffic and plant life applications

Product Family Information

The RSV2 is a line voltage step light in a vertical Configuration perfect for high pedestrian traffic and plant life applications. It is available in standard sources including CFL along with high brightness LED sources delivering 70% lumen maintenance at 50,000 hours with cool white CCT (5500K nominal). Construction includes a die-cast aluminum back box with die-cast copper-free aluminum with 45° cutoff, with frosted tempered glass. The cast louver offers lower light levels with cut-off for lighting stairways or general lighting where shielding of the light source is more important than high light levels.

Benefits

• Corrosion-resistant
• Cool external temperatures
• Ability to shield the light source

Features

• Available with conventional and LED technology
• Cast aluminum and bronze construction
• Silicone gasketing
• Symmetric reflector

Applications

• Walkway

Product Variations

Image	Title	SKU
	Landscape Accessories, Housing Only (RS2-_HO)	RS2- HO
	Step Light, 4.3W LED, 120V, 3K, Horizontal Louvers	RSV2
	Step Light, 6.1W LED, 120V, 3K, Horizontal Louvers	RSV2
	Step Light, 8.0W LED, 120V, 3K, Horizontal Louvers	RSV2
	Step Light, 10.6W LED, 120V, 3K, Horizontal Louvers	RSV2
	Step Light, 2.7W LED, 120V, 4K, Horizontal Louvers	RSV2
	Step Light, 4.3W LED, 120V, 4K, Horizontal Louvers	RSV2
	Step Light, 6.1W LED, 120V, 4K, Horizontal Louvers	RSV2
	Step Light, 8.0W LED, 120V, 4K, Horizontal Louvers	RSV2
	Step Light, 10.6W LED, 120V, 4K, Horizontal Louvers	RSV2

Product Files

Click for Hadco-Step Light Accessories Housing RS2-_HO Spec Sheet

Click for Hadco-RSF2/RSS2/RSC2/RSV2 Step Light LED Spec Sheet

Click for Hadco RSF Step Light LED Installation Sheet
