Cast Lighting  |  SKU: CBL5CB

CBL5CB MR-11 (35W Max) Classic Mr-11 Bullet Light By Cast Lighting

$201.96 $252.45
Shipping calculated at checkout.


Cast Lighting Typically Ships within 1-5 days (exceptions may apply)

Description

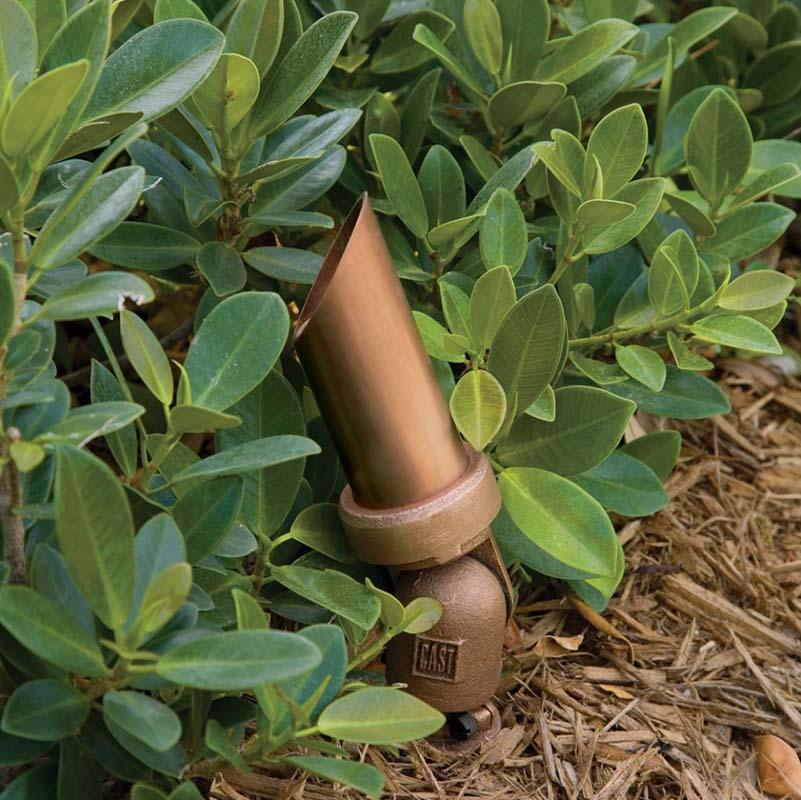

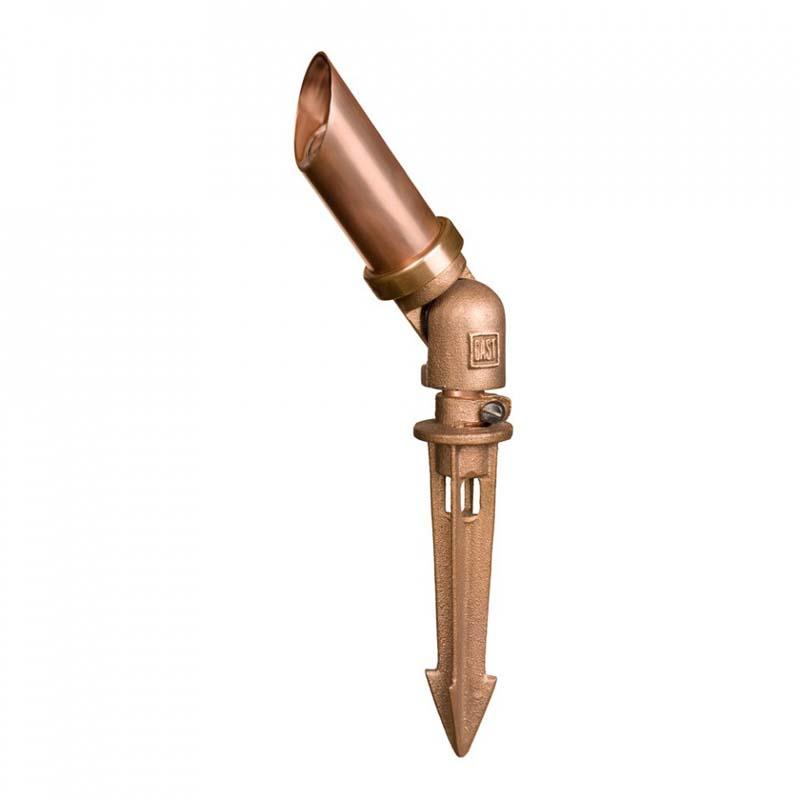

The Cast Lighting CBL5CB is a CAST MR-11 Bullet Light

Description

This rugged copper and solid bronze MR-11 fixture can be stake or canopy mounted.

Applications

Suitable for both uplighting and downlighting plant material, structures and architectural features. A wide range of lamp wattages and beam angles; as well as optional lenses and louvers provide maximum design flexibility.

Features
  • Heavy-gauge copper shroud with solid brass locking ring
  • Solid bronze knuckle
  • Solid Eurometal stake
  • Knuckle adjusts to any angle
  • Convex lens to prevent mineral build-up
  • Pre-wired with 25' 16/2 tin-coated No-Ox® marine grade wire
  • High-temp socket with solid nickel contacts
  • Spider Splice® ready
Specifications
  • Dimensions and Weight: Knuckle and Body: 8" x 1.5" fully extended
    • Stake: 6.25"
    • Weight: 4 lbs.
  • Lamp Specifications: Lamp: 12V MR-11 (35W max.) Lamp not included
  • Listing:a All CAST Lights conform to: UL Std's 1838 & 8750; CE; Certified to CAN/CSA Std's C22.2 No. 250.0 & C22.2 No. 250.13. Suitable for wet locations. FCC Class B Conducted and Radiated. RoHS.
  • Construction:
    • Body: Solid Sand-Cast Bronze
    • Knuckle: Solid Sand-Cast Bronze, Continuously adjustable, secured with 303 stainless steel Philips Head screw.
    • Shroud: Heavy gauge copper
    • Locking Ring: Solid brass
    • Stake: Solid Eurometal black Coated
    • Socket Assembly: High-temperature ceramic socket with solid nickel contacts (to mate with solid nickel MR-11 pins), 316 stainless steel internal contact spring, 304 stainless steel lamp spring. Aluminum heat reflector
    • Wiring: Tin-coated No-Ox marine-grade wiring (inside fixture and external 25 ft. #16/2 lead); socket wire crimped and soldered to lead wire using tin solder and tin crimps protected with waterproof shrink tubing and fiberglass sleeve.
California Residents: Prop 65 regulations

Product Files

Click for CAST Landscape Lighting Catalog

Click for Classic MR-11 Bullet Light: Product Sheet

Click for Landscape Warranty
