Hadco Lighting  |  SKU: DB14-A

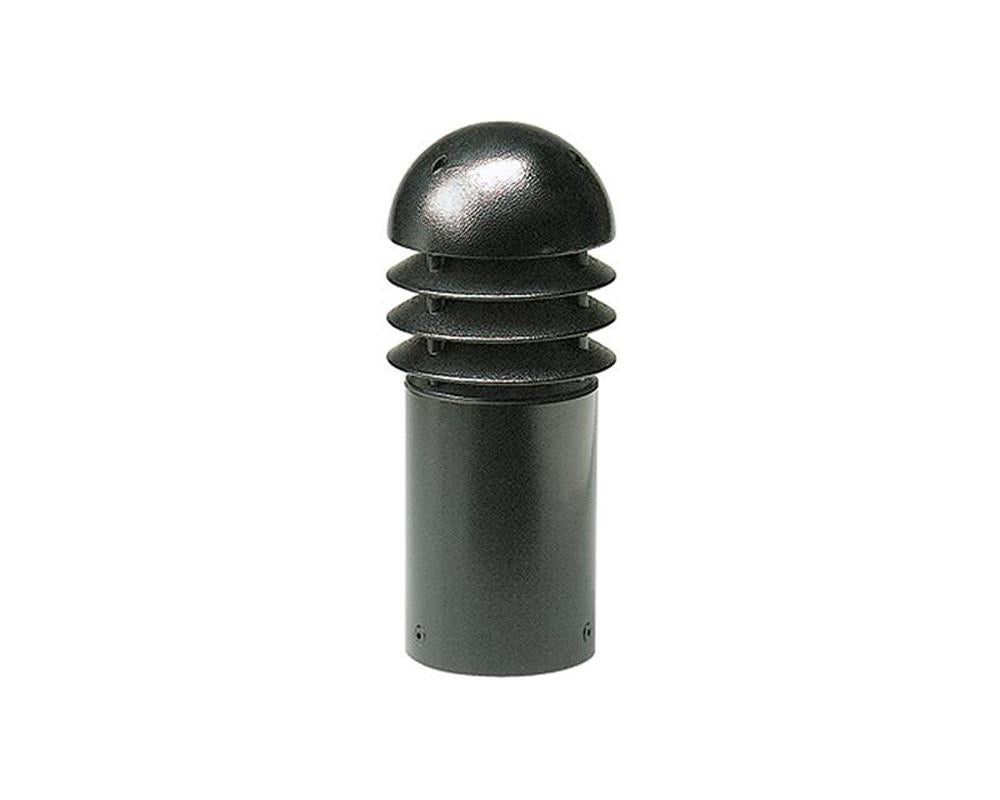

Hadco DB14 120V 100W 14" Incandescent Cast Aluminum Round Top Bollard

$498.67 $623.34
Shipping calculated at checkout.

Select Finish

Description

The DB Series is a line voltage Bollard available in incandescent. This versatile luminaire features a dome roof with die-cast aluminum louvers, and in a variety of heights. Optics include a symmetric, die-cast aluminum louvers with underside painted with highly reflective white powdercoat and a tempered glass globe.

Details

Housing 356 HM high-strength, low-copper, proprietary cast aluminum alloy . Dome roof with die-cast aluminum louvers. Easy access to lamp. 5" dia. extruded aluminum with a wall thickness of 0.125". All non-ferrous fasteners prevent corrosion and ensure longer life
Certifications ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.

Specifications

  • Optics: A0 Symmetric
  • Height: 14 Inch
  • Width: 6 Inch
  • Bolt Circle: 3 Inch
  • Base Diameter: 5 Inch
  • Anchor Rods (Text Format): Internal (3).38 Inch dia. x 8 Inch long (1 cm x 20cm)
  • Max Weight (Text Format): Powdercoat: 10 lbs
  • Electrical Assembly: Ballast assembly is mounted to an aluminum plate, which is mounted inside the base. Quick disconnects for easy installation and removal.
  • Optical Assembly: Symmetric. Die-cast aluminum louvers with underside painted with highly reflective white powdercoat. Tempered glass globe.
  • Warranty: Three-year limited warranty
Product Files

Click for product spec sheet
