Focus Industries  |  SKU: SL08NLBLT

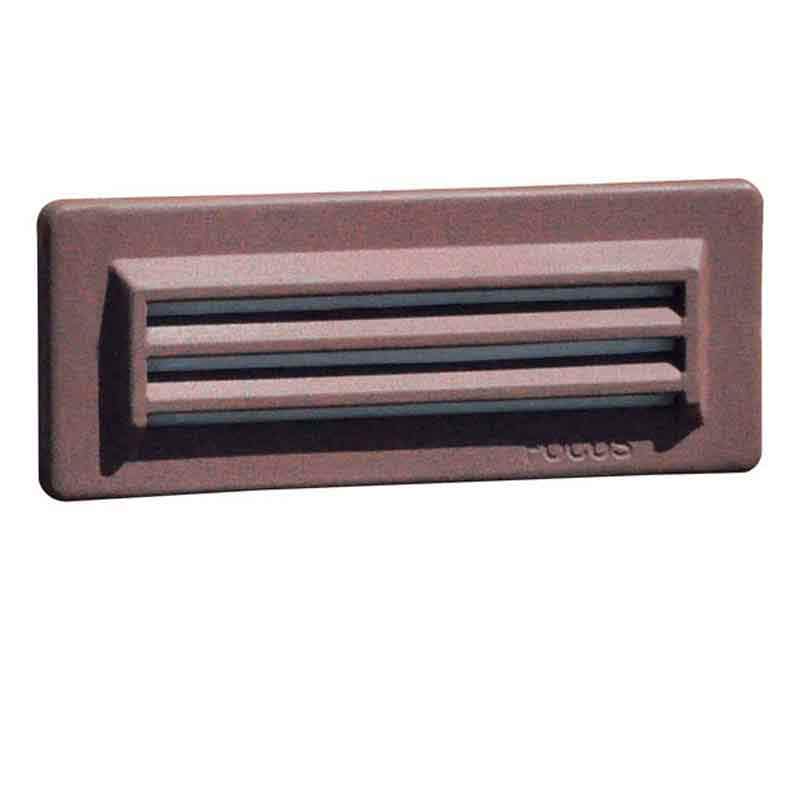

Focus Industries SL08NL Series 3 Louver Flat Panel Brick Light 12V (Lamp Not Included)

$154.29 $192.86
Shipping calculated at checkout.

Select Finish
Select Lens

Focus Industries Typically Ships within 10-28 days (exceptions may apply).

Description

Focus Industries SL08NL Series 3 Louver Flat Panel Brick Light 12V (Lamp Not Included)

Specifications:

  • Construction: Cast Aluminum or brass 3 louver brick light. Stamped stainless steel surface mounting bracket. No back box required.
  • Gasket: Black neosponge closed cell; .190 inch thickness
  • Socket: None
  • Driver: 8w output, 12v AC input. Maximum distance from fixture is 18 feet. For use with magnetic transformers only
  • Voltage Range: 9 to 18 volts. Optimum operating range of 10 to 15 volts for consistent performance and brightness.
  • Wiring: Red(+) and Black(-) 18 gauge zip cord from LED panel. Connects to external driver Red(+) and Black(-) 18 gauge zip cord. Additional 6' 18/2 zip cord supplied for wiring external driver to main cable.
  • For 25 foot 16/2 fixture lead wire add -25F to catalogue number.
  • Connection: FA-05 Quick Connector (not supplied) from LED driver to main cable (12/2, 10/2 or 8/2 only)
  • Mounting: Stainless Steel surface mount bracket; two screws and wall anchors provided; Face plate attaches to bracket with two provided set screws
  • Finish: Aluminum- Black texture polyester powder coat; optional finishes available; Brass- Unfinished; optional finishes available
  • Caution: Must be powered by low voltage AC magnetic transformer only.
