Focus Industries  |  SKU: SL08ALLEDPSBBLT

Focus Industries SL-08-AL-LEDP Series Lensed Flat Panel LED Brick Light 12V

$295.99 $369.99
Shipping calculated at checkout.

Select Finish
Select Lens
Select Color Temperature

Focus Industries Typically Ships within 10-28 days (exceptions may apply).

Description

Focus Industries SL-08-AL-LEDP Series Lensed Flat Panel LED Brick Light 12V

Specifications:

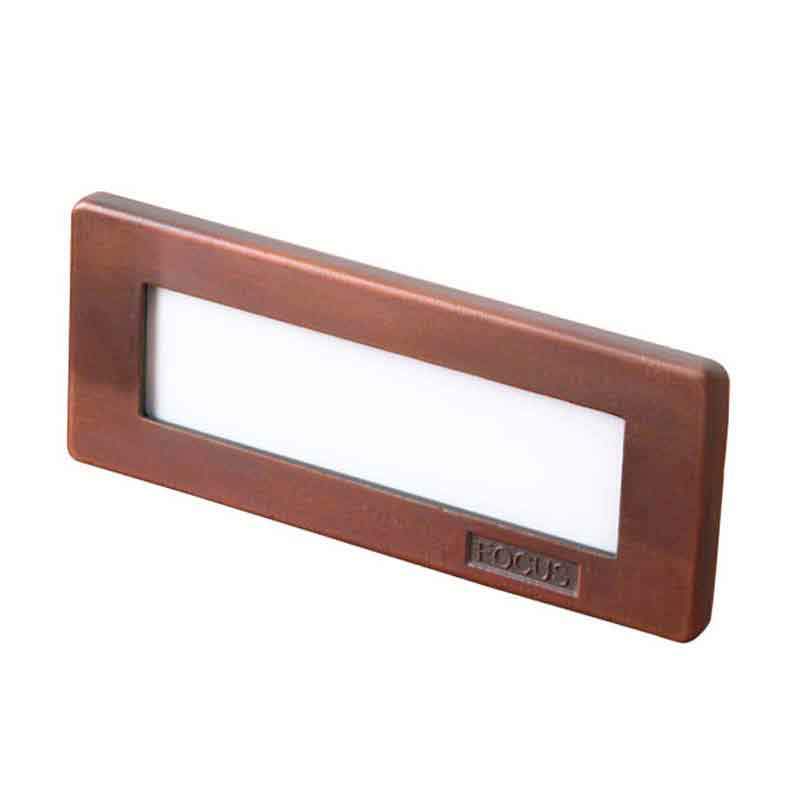

  • Construction: Cast Aluminum or brass brick light with high impact white acrylic lens. Stamped stainless steel surface mounting bracket. No back box required.
  • 3 Lens Options:
    -SL-08-LEDP: Standard white acrylic; creates warm 2700K incandescent like color
    -SL-08-LEDP-SB: Sand Blast clear acrylic; creates soft 3000K halogen like color
    -SL-08-LEDP-CL: Clear acrylic; bright halogen 3000K color
  • Gasket: Black neosponge closed cell; .190 inch thickness
  • Light Source: 12v, 8w integrated LED flat panel with external driver, warm white 3000K; 630 lumens (3000K)
  • Lifetime Rating: 50,000 hours
  • Socket: None
  • Driver: 8w output, 12v AC input. Maximum distance from fixture is 18 feet. For use with magnetic transformers only
  • Voltage Range: 9 to 18 volts. Optimum operating range of 10 to 15 volts for consistent performance and brightness.
  • Wiring: Red(+) and Black(-) 18 gauge zip cord from LED panel. Connects to external driver Red(+) and Black(-) 18 gauge zip cord. Additional 6' 18/2 zip cord supplied for wiring external driver to main cable. For 25 foot 16/2 fixture lead wire add -25F to catalogue number.
  • Connection: FA-05 Quick Connector (not supplied) from LED driver to main cable (12/2, 10/2 or 8/2 only)
  • Mounting: Stainless Steel surface mount bracket; two screws and wall anchors provided; Face plate attaches to bracket with two provided set screws
  • Finish: Aluminum- Black texture polyester powder coat; optional finishes available; Brass- Unfinished; optional finishes available
  • Caution: Must be powered by low voltage AC magnetic transformer only.
Product Files

Click for SL-08-AL-LEDP Specification Sheet

Click for SL-08-AL-LEDP Installation Instructions

Click for Focus Finish Options
