Focus Industries  |  SKU: AL04LEDPBAR

Focus Industries AL-04 4W LED China Hat Area Light

$385.51 $481.89
Shipping calculated at checkout.

Select Finish
Select Light Source
Select Voltage

Focus Industries Typically Ships within 10-28 days (exceptions may apply).

Description

Focus Industries AL-04 4W LED China Hat Area Light

Specification

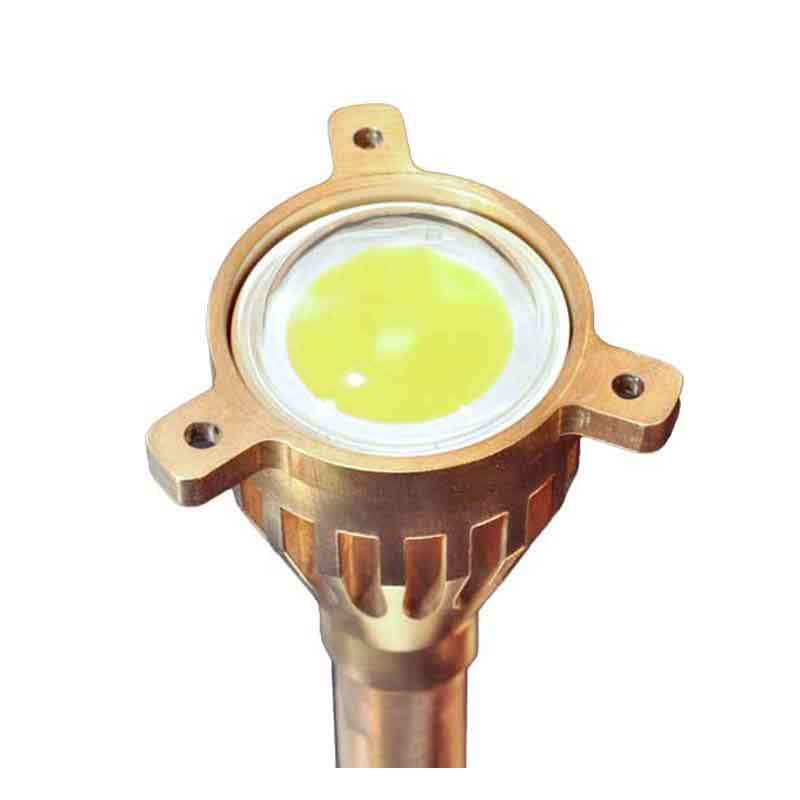

  • Construction: Cast Aluminum or cast brass China Hat; matching extruded aluminum or brass stanchion with fixed LED heat sink hub
  • Lens: High impact clear acrylic
  • Light Source: 4w 300 lumen integrated round LED flat panel, warm white 3000K; optional cool white 5200K 320 lumen available
  • Lifetime Rating: 50,000 hours
  • 12V Internal Driver: 5w 12vDC 350mA output, 12vAC input
  • Socket: None. LED is hard wired inside fixture
  • Mounting: Aluminum Models: FA-03 black 9 inch ABS stake, tapped 1/2 inch NPS, Brass Models: FA-03-LG ABS black 9 inch ABS stake, tapped 1/2 inch NPS
  • Finish: Aluminum-Black texture polyester powder coat. Optional finishes available. Brass-Unfinished brass. Optional finishes available
  • Note:120v to 277v options available with remote LED driver. Must use FA-26 mounting post or FA-JBOX junction box to house remote driver.
Product Files

Click for AL-04-LEDP Specification Sheet

Click for AL-04-LEDP 12V Installation Instruction

Click for Focus Finish Options
