Cast Lighting Classic MR-16 Bullet Light

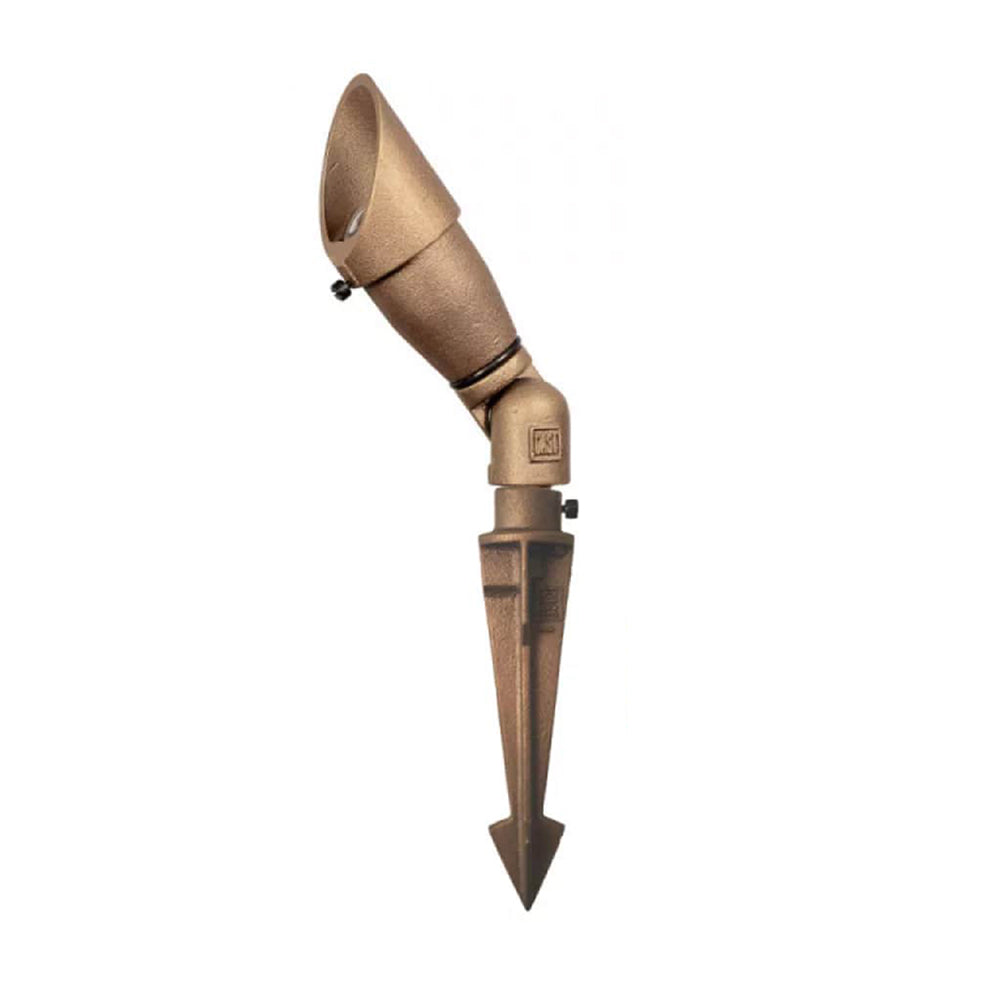

This rugged solid sand-cast bronze, LED drop-in, MR-16 fixture is known as the workhorse of landscape lighting. It is virtually indestructible, weathers to a beautiful patina, and survives the harshest of environmental conditions.
Made with 96% USA content!
Applications
Use for uplighting plant material, structures, and architectural features. A wide range of lamp wattages and beam angles; as well as optional lenses and louvers provide for maximum lighting design flexibility.
Features
- MR16 Lamp Not Included.
- Made with 96% USA content.
- Solid bronze shroud and body
- Solid bronze stake
- Extra-long shroud for glare control
- Knuckle adjusts to any angle
- Convex lens to prevent mineral build-up
- Pre-wired with 25’ #16/2 tin-coated No-Ox® marine grade wire
- High-temp socket with solid nickel contacts
- Includes heat shield to protect socket
- Spider Splice® ready
- LED Retrofit for installed bullets. For new installation use CBLED141
Models
- CBL1CBUSA
- CAST Lighting magnetic toroidal core Transformers
Both Journey Men 75, 150, 300, 600, & 900 Watt and Master Series 900 & 1200 Watt - CAST No-OX Tin-Coated Marine-Grade Wire
Available in #8/2, #10/2, #12/2, #14/2, & #16/2 gauges. - Astronomical Digital & Mechanical Timers
- Photo Cells
- Seamless non-insulated crimp connections & Heat shrink for wire connections
Specifications
-
Dimensions and Weight: Knuckle and Body: 10" x 2.5" fully extended
- Stake: 8.5"
- Weight: 5 lbs.
- Lamp Specifications: Lamp: 12V MR-16 (50W max.)Lamp not included or MR-16 LED Lamp.
- Listing: All CAST Lights conform to: UL Std's 1838 & 8750; CE; Certified to CAN/CSA Std's C22.2 No. 250.0 & C22.2 No. 250.13. Suitable for wet locations. FCC Class B Conducted and Radiated. RoHS.
-
Construction:
- Body: Solid Sand-Cast Bronze
- Knuckle: Solid Sand-Cast Bronze, Continuously adjustable, secured with 303 stainless steel Philips Head screw.
- Shroud: Solid Sand-Cast Bronze
- Locking Ring: Solid brass
- Stake: Solid Sand-Cast Bronze
- O-Rings: Silicone Rubber
- Lens: Covex borosilicate glass
- Socket Assembly: High-temperature ceramic socket with solid nickel contacts (to mate with solid nickel MR-16 pins), 316 stainless steel internal contact spring, 304 stainless steel lamp spring. Aluminum heat reflector
- Wiring: Tin-coated No-Ox marine-grade wiring (inside fixture and external 25 ft. #16/2 lead); socket wire crimped and soldered to lead wire using tin solder and tin crimps protected with waterproof shrink tubing and fiberglass sleeve.
Product Files
Click for CAST Landscape Lighting Catalog
Click for Classic MR-16 Bullet Light: Product Sheet
Click for Classic MR-16 Bullet Light: Socket Replacement Instructions
